Flameless Explosion Vent Solutions For Indoor Safety

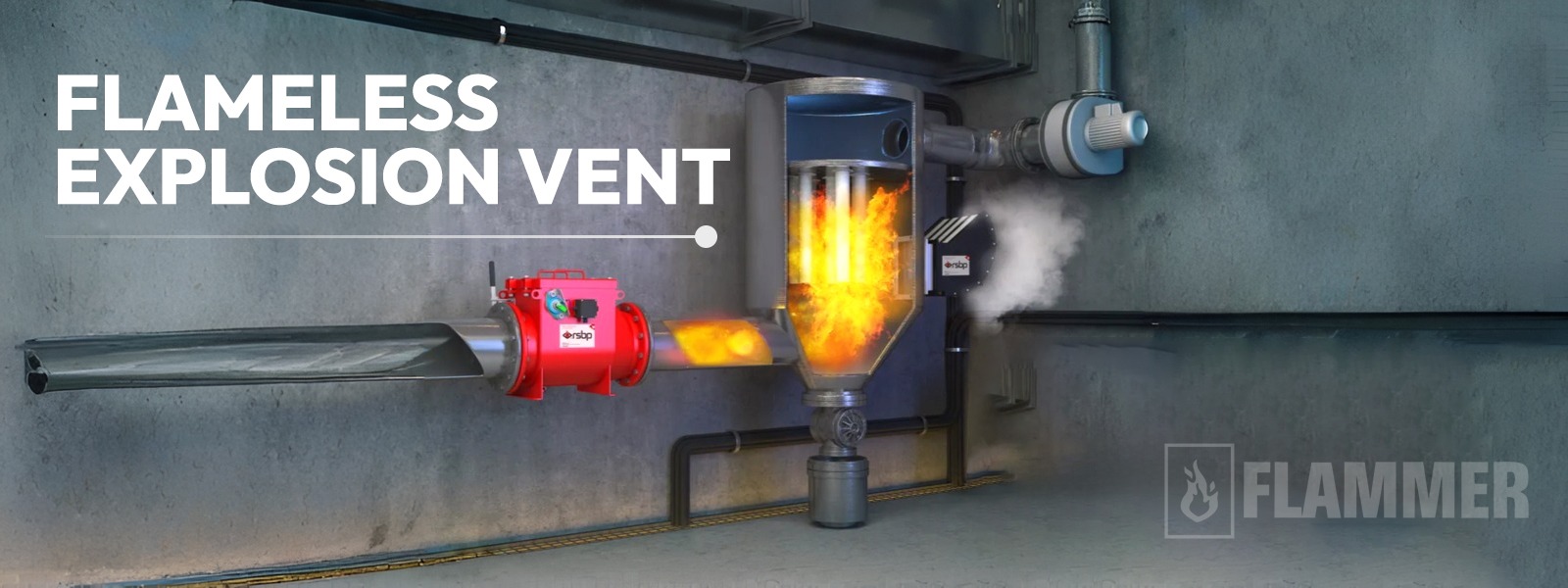

A Flameless Explosion system is specially designed to control explosion pressure and stop flames from spreading outside the equipment. In many industries, dust explosions can occur inside silos, filters, or process vessels. Traditional venting systems release flame and hot gases into the surrounding area, which may not be safe for indoor installations. A properly designed flameless vent solves this problem by cooling the flame and retaining burning particles, allowing pressure to be safely released without external fire discharge.

Flammer Technologies offers a high-performance Flameless Explosion Venting Device built for reliable operation and long service life. It works through a mesh filter that cools the gases instantly, stopping the fire in its tracks. As one of the top Flameless Explosion Monitoring manufacturers in India, we build these systems to handle the toughest dust and gas risks. Our goal is to make sure that even if a blast happens inside your silo or dust collector, your workers standing right next to it stay completely safe from heat and fire.

Installing a Flameless Explosion system helps industries protect workers, equipment, and production areas from the impact of sudden dust explosions. It is especially useful in plants where ducting an explosion vent to the outside is not practical. By safely venting pressure and stopping flames, the system reduces damage and ensures safer working conditions.

Flammer Technologies has grown into one of the most trusted Flameless Explosion Monitoring suppliers in India because we focus on the technical details that actually matter. Our devices are easy to install on existing indoor equipment, giving you a fail-safe way to protect your plant without needing expensive ductwork to lead flames outside. Choosing our technology means choosing a smarter, cleaner, and much safer way to manage explosion risks.

Specification Table

Parameter	Specification
Static Activation Pressure (P_stat)	Standard : 0.1 bar. Range start from 0.01 bar(g) — custom set points available
Panel Materials	316L Stainless Steel, 304 SS
Available Shapes	Circular, Square, Rectangular — bespoke profiles available
Size Range	DN 100 mm up to DN 2000 mm (larger on request)
Operating Temperature	-40°C to +200°C (extended ranges available)
Certifications	ATEX (2014/34/EU), EN 14491:2012, NFPA 68
Surface Finish	2B Mill, Electro-Polished, Coated — to process needs
Connection Method	Bolted flange, welded neck, or clamped — to suit vessel
Installation Orientation	Horizontal, vertical or inclined — fully configurable

A flameless explosion vent system consists of two main components working together as a single integrated protection unit:

The Explosion Vent Panel

The Flame Arresting Filter

Flameless explosion vents are used wherever explosion protection is essential, but outdoor venting is impractical or impossible. If your process involves combustible dust, flammable gas, or ignitable vapour and your equipment is indoors — this is the technology for you.
